DC AXIAL FAN Series
Size:
Ø225x225x80mm
General Specifications
• Motor:4 Poles brushless DC motor
• Frame & Impller:Plastic(UL 94V-0)
• Storage temperature: -40°to + 75°
• Operating temperature: -10°to + 75°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Operating Voltage range |
Rated Current |
Speed |
Air Flow |
Air Pressure |
Noise |
||
|
Part NO. |
V |
V |
A |
R.P.M |
CFM |
M³/min |
mmh2o |
inh2o |
dB.A |
|
WAD22580MG24B |
24 |
14.0~26.4 |
2.4 |
2950 |
618.0 |
17.60 |
21.2 |
0.83 |
60.0 |
|
WAD22580MG48B |
48 |
28.0~56.0 |
1.2 |
2950 |
618.0 |
17.60 |
21.2 |
0.82 |
52.2 |
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|
Air Flow and Static Pressure acteristics |

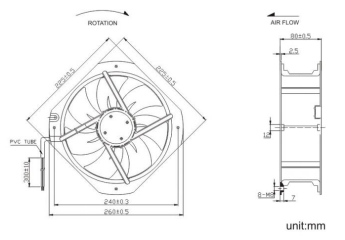

Unit:mm |
 |
 |
