AC AXIAL FAN Series

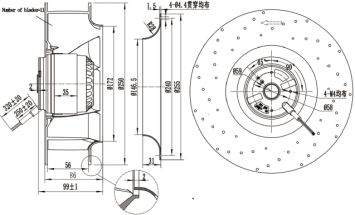

Size:
Ø255x99mm
General Specifications
• Motor:Extemal rotor motor
• Frame & Impller: Impeller PA66(94v-0)
• Operating temperature: -20°to + 70°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Frep |
Rated Current |
Input Power |
Speed |
Air Flow |
Air Pressure |
Noise |
|
Part NO. |
V |
Hz |
A |
W |
R.P.M |
CFM |
mmh2o |
dB.A |
|
WAA25099HG115B |
115 |
50 |
1.30 |
152 |
2600 |
854 |
59.0 |
75 |
|
WAA25099HG230B |
230 |
50 |
0.65 |
152 |
2600 |
854 |
59.0 |
75 |
Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing

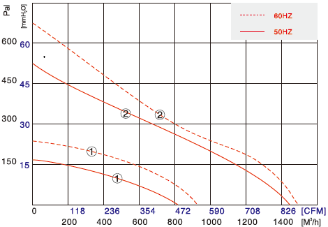

| Air Flow and Static Pressure acteristics | Unit:mm |
 |
 |
