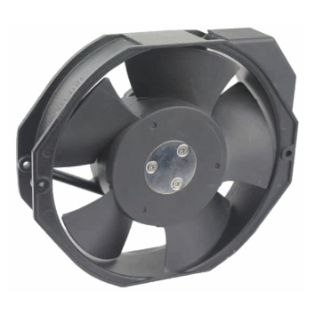

AC AXIAL FAN Series
Size:
172x150x38mm
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting
ADC-12, 5 Blades , P.B.T（94V-0）
• Operating temperature: -20°to + 80°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Frep |
Rated Current |
Input Power |
Speed |
Air Flow |
Air Pressure |
Noise |
|
Part NO. |
V |
Hz |
A |
W |
R.P.M |
CFM |
inh2o |
dB.A |
|
WAA17238HG115B |
115 |
50 |
0.27 |
31 |
2850 |
195 |
0.65 |
52 |
|
WAA17238HG230B |
230 |
50 |
0.14 |
31 |
2850 |
195 |
0.65 |
52 |
Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|

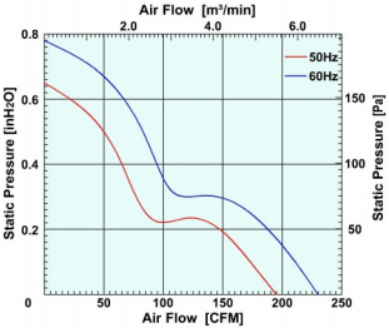

Air Flow and Static Pressure acteristics |

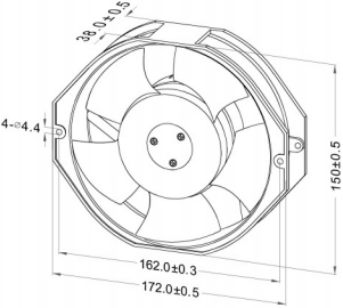

Unit:mm |
 |
 |
