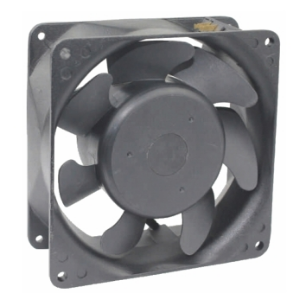

AC AXIAL FAN Series
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting
ADC-12, 7 Blades , P.B.T（94V-0）
• Operating temperature: -20°to + 80°
Major Characteristic Parameters
Specifications
|
Model |
RatedVoltage |
Frep |
RatedCurrent |
Input Power |
Speed |
AirFlow |
AirPressure |
Noise |
|
PartNO. |
V |
Hz |
A |
W |
R.P.M |
CFM |
inh2o |
dB.A |
|
WAA14045HG115B |
115 |
50 |
0.28 |
32 |
2850 |
160 |
0.49 |
48 |
|
WAA14045HG230B |
230 |
50 |
0.14 |
31 |
2850 |
160 |
0.49 |
48 |
Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|
Air Flow and StaticPressureacteristics |
Unit:mm |
 |
 |
