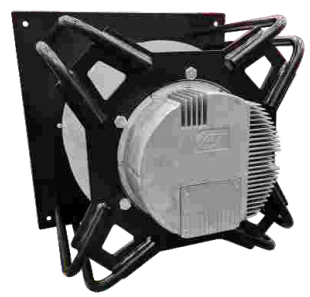

EC AXIAL FAN Series
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting ADC-12
• Operating temperature: -20°to + 105°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Operating Voltage range |
Current |
Rated Current |
Power |
Speed |
Air Flow |
Air Pressure |
Noise |
||
|
Part NO. |
V |
V |
HZ |
A |
W |
R.P.M |
CFM |
M³/h |
mmh2o |
Pa |
dB.A |
|
WAD500HG380B |
380 |
380-460 |
50-60 |
4.95 |
3000 |
1800 |
7647 |
13000 |
107 |
1050 |
89 |
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|
Air Flow and Static Pressure acteristics |
Unit:mm |
 |
 |
