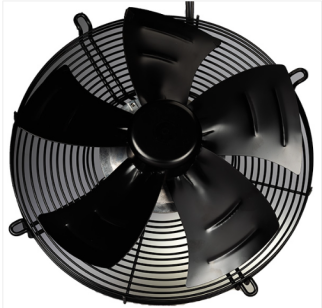

EC AXIAL FAN Series
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting
ADC-12, 5 Blades , Metal blades
• Operating temperature: -20°to + 105°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Operating Voltage range |
Current |
Rated Current |
Power |
Speed |
Noise |
Curve
|
Blowing
|
Suction
|
|
Part NO. |
V |
V |
HZ |
A |
W |
R.P.M |
dB.A |
|||
|
WAD910HG380B |
380 |
380-460 |
50-60 |
3.1 |
1800 |
1000 |
77 |
1 |
√ |
√ |
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|
Air Flow and Static Pressure acteristics |
Unit:mm |
 |
 |
