EC AXIAL FAN Series
Size:
φ316x159mm
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting ADC-12
• Operating temperature: -20°to + 105°
Major Characteristic Parameters
Specifications
|
Model |
Rated Voltage |
Operating Voltage range |
Current |
Rated Current |
Power |
Speed |
Air Flow |
Air Pressure |
Noise |
||
|
Part NO. |
V |
V |
HZ |
A |
W |
R.P.M |
CFM |
M³/min |
mmh2o |
inh2o |
dB.A |
|
WAD316159HG110B |
110 |
85-130 |
50-400 |
2.4 |
140 |
1600 |
1288.7 |
36.47 |
47.7 |
1.88 |
62 |
|
WAD316159LG220B |
220 |
150-240 |
50-400 |
0.8 |
95 |
1400 |
1127.61 |
31.91 |
36.52 |
1.44 |
56 |
|
WAD316159HG220B |
220 |
150-240 |
50-400 |
1.2 |
140 |
1600 |
1288.7 |
36.47 |
47.7 |
1.88 |
62 |
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
|

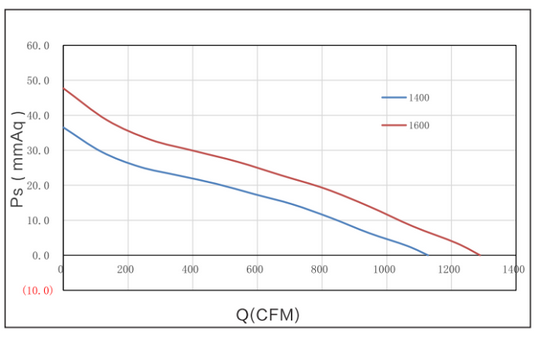

Air Flow and Static Pressure acteristics |

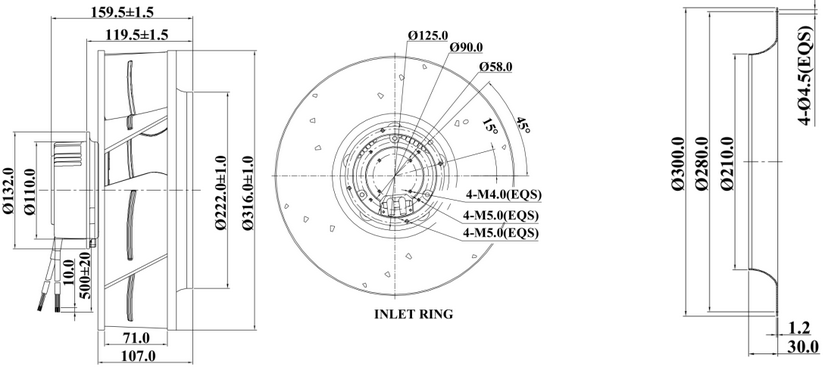

Unit:mm |
 |
 |
